Dual Fuel Charcoal Grill Cooking

Loading Charcoal Into Your Coleman® Revolution™ Dual Fuel Charcoal Grill

  • The number of charcoal briquettes needed depends on the size of your grill, the amount of food you will be cooking, weather conditions and cooking time.
  • Make sure you have enough briquettes to cover the charcoal grate in a single layer.
  • To determine the number of briquettes required, it is recommended to place the briquettes onto the charcoal grate to check for quantity, then remove and place into a chimney charcoal starter.
  • Maximum loading 1.5kg of charcoal.

Lighting Your Coleman® Revolution™ Dual Fuel Charcoal Grill

Warning Symbol

WARNING

Do not use any flammable liquids such as lighting fluids, gasoline, any accelerants or electric charcoal starter, any other form of self-lighting charcoal at any time, including when manually lighting. Failure to follow this instruction may cause serious bodily injury or death.

THIS PRODUCT LIGHTS WITH GAS ONLY.

The Instastart™ Charcoal Ignition Burner uses a gas ignition system to take the hassle out of lighting charcoal briquettes.

  1. Open the lid. Remove cooking grate. Ensure the charcoal grate is in position.

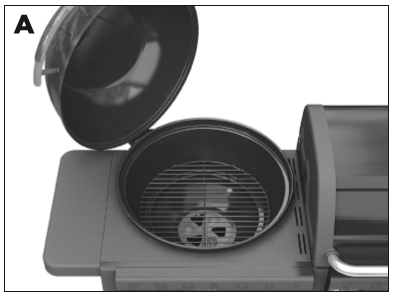

    Figure A: Open Lid
  2. Open all air vents before building the fire. Charcoal requires oxygen to burn, so be sure nothing blocks the vents.

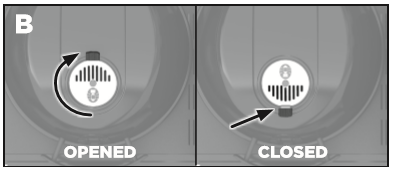

    Figure B: Open Lid Vent

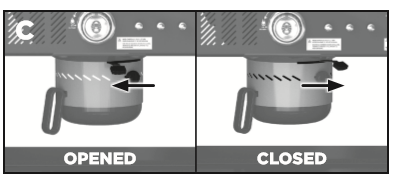

    Figure C: Open Bottom Vent
  3. Arrange the charcoal onto the charcoal grate in an even layer, or pile the charcoal in the middle of the grate, if both direct and indirect cooking is needed.
  4. Re-position the cooking grate.
  5. Turn gas supply on at least one turn, slowly

    Warning Symbol

    WARNING

    Do not lean over open barbecue while lighting.

  6. Press in and turn your charcoal ignition burner to the ON position.
  7. Press your Instastart™ ignition button and charcoal lighting burner will light, starting the charcoal for you.

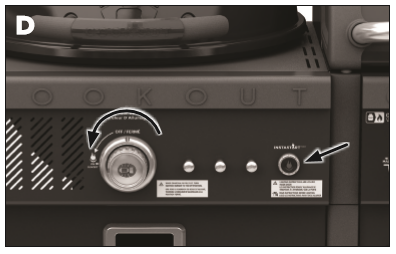

    Figure D: Open Charcoal Burner Knob
  8. After charcoal has ignited (approximately 5 minutes), press in and turn the gas ignition burner to the OFF position.

    NOTE:
    If using BOTH the GAS BARBECUE and the CHARCOAL COOKOUT at the same time, turn off the gas source AFTER you have completed cooking on the Revolution™ gas barbecue.

    If ONLY using the Charcoal COOKOUT turn the gas source OFF after turning the charcoal ignition burner OFF.

  9. Close lid and allow the charcoal to burn.
  10. You can begin cooking when briquettes have a light coating of gray ash (approximately 15-20 minutes).
  11. Consult your recipe for recommended cooking times. Use a temperature probe to check doneness.
Warning Symbol

WARNING

  • Do not hold hand directly above burner when manually lighting.
  • Do not lean over open barbecue while lighting.
Warning Symbol

CAUTION

Flame may be hard to see on a bright day.


Putting Out The Fire Of Your Coleman® Revolution™ Dual Fuel Charcoal Grill

Once cooking is complete, follow these steps to extinguish the fire:

  1. Using protective gloves, close the Kettle hood
  2. Using protective gloves, close all vents

NOTE: Assume that it will take at least 1 hour for your fire to extinguish and your BBQ to cool down. There is not an ON or OFF switch with a charcoal fire. Always be cautious about making any assumptions about when the fire is completely out and completely cool.

Warning Symbol

WARNINGS

DO NOT STORE BARBECUE UNTIL ASHES AND COALS ARE FULLY EXTINGUISHED
ALLOW CHARCOAL TO BURN OUT BEFORE REMOVING FROM GRILL TO AVOID A POSSIBLE FIRE
NEVER DUMP HOT COALS WHERE THEY MIGHT BE STEPPED ON OR BE A FIRE HAZARD
NEVER DUMP ASHES OR COALS BEFORE THEY ARE FULLY EXTINGUISHED


Removing Ashes From Your Coleman® Revolution™ Dual Fuel Charcoal Grill

Remove ash catcher, only after the charcoal has been extinguished and allowed to cool.


TIP: A pile of ash left in the ash catcher can collect moisture and make cleanup a challenge. Clean the ash catcher after every use.

  1. Ensure that the ash catcher is in position.
  2. Ensure that the fire bowl vent is closed.

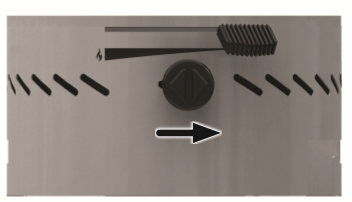

    Ensure vent closed
  3. Once you are sure that the ash has cooled, open the lid and remove the cooking grate.
  4. Sweep all ash and debris from the charcoal grate into the lower fire bowl. Dispose of any larger pieces of charcoal.
  5. Grasp the ash sweep handle and move back and forth until most of the ash is swept into the ash catcher. Use a hand broom for any leftover residue in the fire bowl.

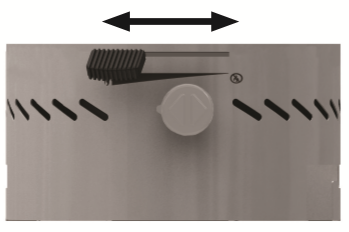

    Sweep ashes
  6. With your heat resistant ash container handy, remove the ash catcher from its position and carefully dump all ashes into a heat resistant container. Allow it to sit for 24 hours.

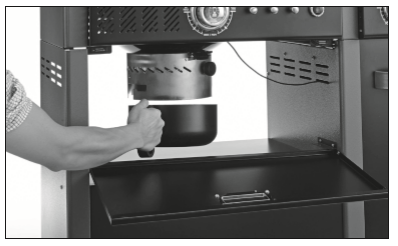

    Remove ash catcher
